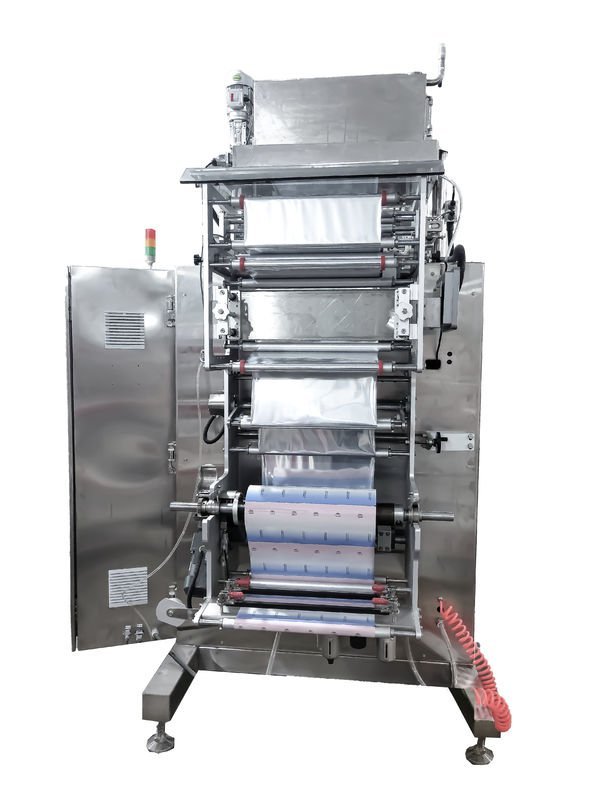

High-Speed Automatic Pouch Packing Machine for Particles, Powders, and Liquids
Engineered for modern production lines demanding both speed and precision, the High-Speed Automatic Pouch Packing Machine represents a sophisticated solution for form-fill-seal (FFS) packaging. This multi-column system is meticulously designed to automate the creation of small, consistent pouches from roll film, seamlessly integrating forming, precise dosing, and reliable sealing into one continuous, high-output operation. It adeptly handles a diverse range of product states—including free-flowing particles, fine powders, and various liquids—with configurations tailored to specific material characteristics. By combining robust mechanical architecture with intelligent control systems, this machine delivers the repeatable performance, operational stability, and flexible throughput essential for cost-effective, large-scale manufacturing across numerous industries.
Product Advantages
The machine’s design philosophy centers on reliability, efficiency, and user-centric operation, translating into several key advantages that enhance production line performance.
Robust Control & Electrical System
Operational integrity is ensured through a premium electrical architecture built with industry-leading components from Schneider or OMRON. This foundation guarantees consistent system response, reduces downtime, and provides the stability needed for sustained high-speed cycling, ensuring every sealing and cutting action is precisely repeatable.
High-Throughput Multi-Lane Production
Designed for volume, the system achieves impressive output speeds ranging from 30 to 60 pouches per minute per lane (column). This multiplicative capacity, where total output is speed multiplied by the number of active columns, makes it ideal for high-demand production environments, maximizing efficiency and return on investment.
Precise Film Tracking & Registration
To maintain pouch consistency and minimize material waste, the machine incorporates a JULONG photoelectric registration sensor (“ronic eye”). This system ensures accurate alignment of pre-printed films, guaranteeing stable cutting positions and a professional, consistent package appearance throughout long production runs.
Synchronized Sealing & Bag Pulling Mechanism
At the heart of its operation is a motor-driven crank-type heat-sealing and bag-pulling system, synchronized via an encoder. This intelligent synchronization precisely coordinates film advancement with the sealing and cutting cycles, enabling exceptional control over pouch length and delivering uniform, reliable seals even at maximum operating speeds.
Hygienic & Durable Construction
Prioritizing product safety and ease of maintenance, all parts in direct contact with the product are constructed from food-grade Stainless Steel 304. This material choice supports stringent hygiene protocols, allows for straightforward cleaning, and ensures corrosion resistance for long-term use with food, chemical, and personal care products.
Versatile Material Compatibility
The machine offers broad compatibility with various laminated packaging films, such as BOPP/PE structures. This flexibility allows manufacturers to select the optimal film based on critical factors like barrier properties (oxygen, moisture), seal strength, shelf-life requirements, and desired package aesthetics, adapting to diverse market needs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Machine Type | High-Speed Automatic Multi-Column Pouch Packing Machine |
| Product Compatibility | Particles, Powders, Liquids (configurable) |
| Bag Pulling Mechanism | Motor Crank Type with Encoder-Controlled Sealing |
| Primary Sealing Method | Twisted Edge Adhesive Seal |
| Horizontal Sealing Actuation | AirTAC Pneumatic Cylinder |
| Back Seal Width | 4 – 8 mm (Plain) |
| Horizontal Seal Width | 8 – 10 mm (Single-Side Diagonal Mesh, 1mm spacing) |
| Easy-Tear Features | Optional: Point-Shaped or Double Easy-Tear (Independent Device) |
| Pouch Capacity Range | 1 – 50 ml |
| Dosing Accuracy | ±1% to ±10% (Material Dependent) |
| Packaging Speed | 30 – 60 cuts/min × Number of Columns |
| Configurable Columns | 4 – 12 Columns (Fixed per Bag Width Specification) |
| Pouch Dimension Range | Width: 20 – 67 mm; Length: ≤150 mm or ≤180 mm |
| Packaging Film | Laminated Films (e.g., BOPP/PE) |
| Registration Sensor | JULONG Photoelectric Eye |
| Air Supply Pressure | 5 – 6 kg/cm² |
| Air Consumption | ~2 m³/min |
| Power Supply | 380V / 50Hz, Single-Phase, 10 – 20 kW |
| Core Electrical Components | Schneider or OMRON |
| Machine Weight | Approx. 700 kg |
| Leak-Proof Sealing Line (Liquids) | 1 mm Width |
| Maximum Forming Depth | 600 mm (Standard) |
Application Fields
The versatility and precision of this pouch packing machine make it a valuable asset across a wide spectrum of industries requiring efficient, small-portion packaging.
Food & Beverage Industry
Ideal for packaging snack items (nuts, candies), granular seasonings (salt, pepper), powdered products (instant drink mixes, spices), and liquid condiments (sauces, oils) into single-serve or recipe-sized sachets, ensuring freshness and convenience.
Daily Chemicals & Personal Care
Perfect for portioning liquid and semi-liquid products such as shampoo samples, lotion packets, hand sanitizer sachets, and detergent singles. The machine ensures clean seals and accurate fills, crucial for product integrity and consumer experience.
Pharmaceutical & Nutraceutical Sector
Well-suited for packaging pre-measured doses of powdered supplements, effervescent granules, or herbal powders. The hygienic stainless-steel contact parts and consistent dosing support compliance with good manufacturing practices for relevant products.
Industrial & Chemical Materials
Capable of handling compatible industrial powders, granules, or liquid additives (e.g., lubricants, dyes, reagents). The robust construction and stable pneumatic system provide reliable performance in demanding batch production environments.
