Product Introduction

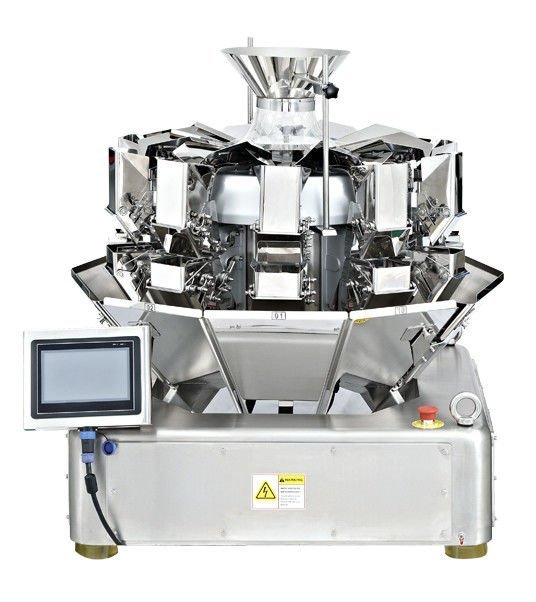

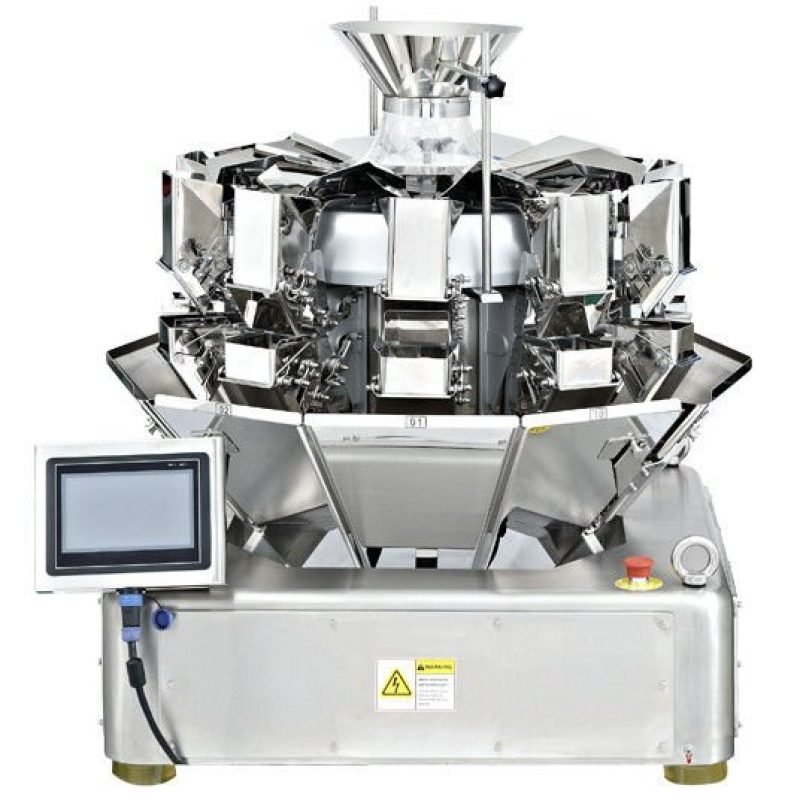

The JW-AS14-1-1 Mini Microcomputer Combination Weigher represents a pinnacle of engineering in compact, high-speed precision dosing for small granular products. Engineered to excel in continuous production environments, it delivers exceptional weighing accuracy within a 2–200 g range, achieving throughputs of up to 120 packets per minute. Its core innovation lies in harmonizing robust performance with a minimized footprint, courtesy of a thoughtfully designed 0.5 L hopper. Central to its user-friendly operation is an intuitive 7-inch touch screen control panel, streamlining setup, monitoring, and daily adjustments. This model is the definitive solution for manufacturers seeking unwavering reliability, rapid product changeover capabilities, and straightforward sanitation—all within the constraints of limited installation space.
Product Advantages
High-Precision Weighing Performance: At the heart of the system are high-accuracy digital load cells coupled with advanced signal processing algorithms. This synergy ensures consistent, repeatable results with an impressive accuracy of ±0.1–1.0 g, adaptable to varying product characteristics and target weights.
High Throughput in a Compact Format: The machine defies its small size by achieving speeds up to 120 packets per minute. The miniaturized 0.5 L hopper structure is key, enabling efficient integration into packaging lines while significantly reducing the overall equipment size and discharge height.
Stable and Robust Mechanical Structure: An enhanced, integrated frame design provides superior rigidity and stability. This robust construction fortifies the system against external interference, guaranteeing consistent and reliable readings even during sustained high-speed operation.
Optimized Feeding and Combination Probability: A specially engineered V-shaped feeding pan ensures optimal product flow control. This design facilitates smoother, more uniform distribution to the weighing hoppers, directly increasing combination accuracy and operational success rates.
Low Vibration Impact for Enhanced Accuracy: The innovative side-mounted stepper motor actuator shortens the critical path between the product discharge point and the sensor. This configuration dramatically reduces vibration influence during hopper actuation, leading to improved final weight stabilization and superior repeatability.
Smart Operation and Global Usability: Designed for a worldwide market, the system features a multi-language interface and a comprehensive built-in help menu. This smart design enables rapid operator training and seamless use across diverse international production facilities.
Recipe Management for Fast Switching: Boost production line flexibility with the capacity to save up to 100 distinct parameter sets. This extensive recipe management allows for instantaneous switching between different products and target weights, drastically minimizing changeover downtime.
Automatic No-Product Stop Function: An intelligent detection system allows the machine to enter a standby mode automatically when no product is sensed. This function promotes more stable weighing cycles and conserves energy by minimizing unnecessary mechanical movement.
Independent Vibration Control: Each feeder vibrator can be calibrated and controlled independently. This granular adjustment ensures perfectly uniform feeding for each product stream, which is fundamental to achieving overall weighing stability and precision.
Easy Sanitation and Maintenance: Built to withstand demanding environments, the weigher boasts an IP65-rated waterproof and dustproof design. Features like an integrated waterproof cover and improved sealing structures simplify cleaning procedures and provide enhanced protection for internal components.
Flexible Configuration: The system is designed for adaptability. A range of optional components—including patterned or dimple plates, aggregate (timing) hoppers, data printers, and overweight sorting devices—can be integrated to tailor the machine to specific packaging line requirements.
Technical Specifications
| Model | JW-AS14-1-1 |
| Weighing Range | 2–200 g |
| Weighing Accuracy | ±0.1–1.0 g |
| Maximum Speed | Up to 120 packets/min |
| Hopper Capacity | 0.5 L (500 ml) |
| Control Panel | 7-inch touch screen |
| Drive System | Stepper motor |
| Optional Parts | Patterned/Dimple plate, aggregate (timing) hopper, printer, overweight sorter |
| Power Specification | 220 V / 900 W / 50–60 Hz / 8 A |
| Packaging Size (L × W × H) | 1130 mm × 910 mm × 910 mm |
| Machine Weight | 180 kg |
Product Application Fields
This advanced microcomputer combination scale is engineered for the precise weighing and dosing of small, free-flowing granular materials within fully automated packaging lines. It is ideally suited for a diverse range of industries, including:
Food Processing: Excellently handles products such as assorted candies, seeds, coffee beans, chocolate drops, and various seasoning granules (e.g., monosodium glutamate). Its gentle and accurate handling preserves product integrity.
General Granular Products: The perfect solution for any small granular material that requires rapid, high-accuracy multi-head combination weighing prior to bagging, pouching, or container filling operations.
