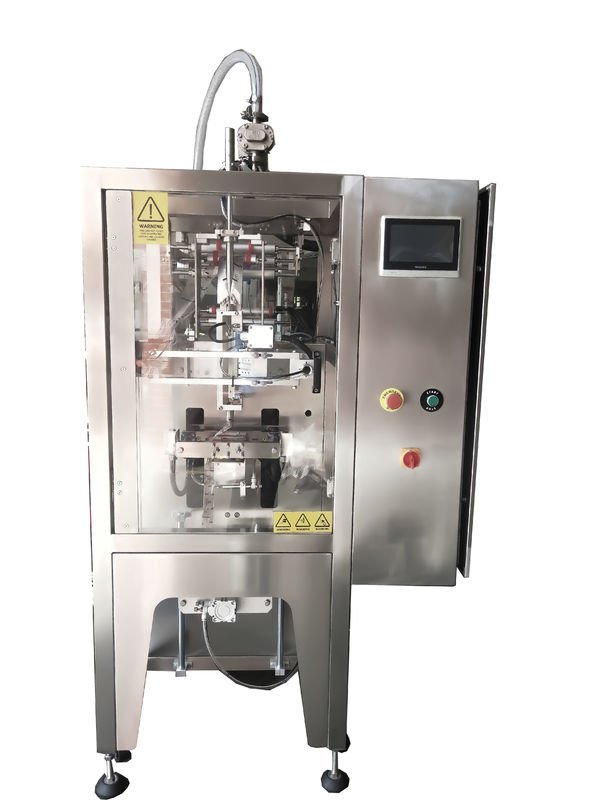

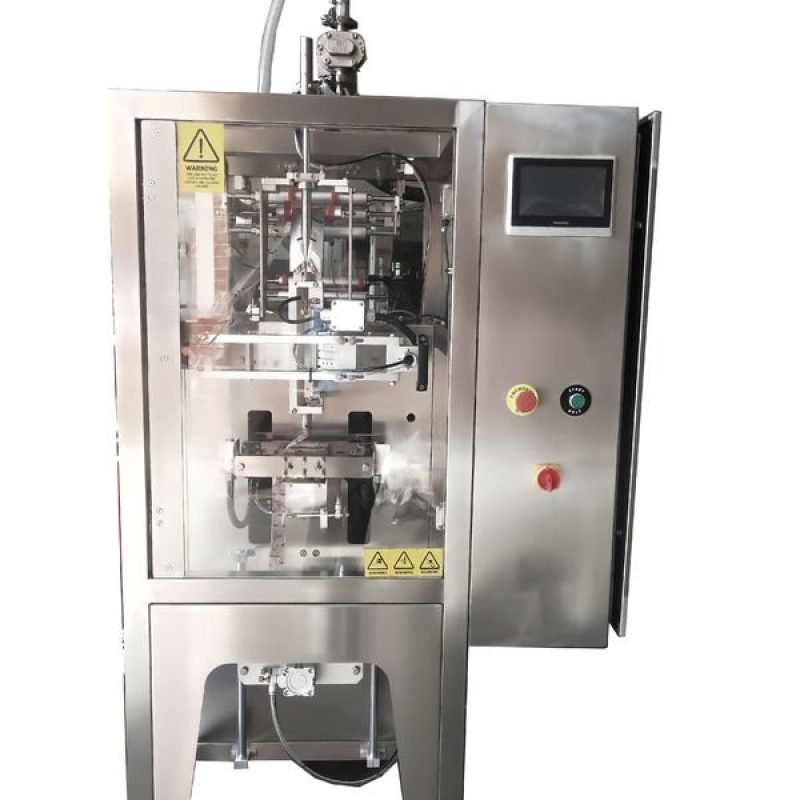

Automatic Pouch Filling and Sealing Machine
Designed for the rigorous demands of modern liquid packaging lines, this Automatic Pouch Filling and Sealing Machine represents a pinnacle of efficiency and reliability. It seamlessly integrates the complete packaging process—from film forming and precise dosing to bag pulling, cutting, and final sealing—into a single, automated unit. Constructed with a durable stainless-steel frame and governed by an advanced PLC control system, the machine ensures consistent, high-quality sachet production. Its compact design is optimized for a defined bag-making range, delivering neat and secure pouches that enhance brand presentation. Engineered for continuous operation, it features a variable-frequency motor crank structure and heat-sealed bag pulling mechanism, guaranteeing smooth film handling and dependable performance throughout extended production shifts, thereby standardizing output and significantly boosting overall line productivity.
Core Product Features
This machine is distinguished by several key engineering advantages that directly address critical packaging challenges. Its precision dosing system delivers remarkable measurement accuracy within ±1–10%, adaptable to various materials and fill volumes, which minimizes product giveaway and ensures exceptional batch-to-batch consistency. For liquid integrity, the equipment incorporates a specialized 1mm horizontal sealing leak-proof line and utilizes a twisted-edge adhesive sealing method, creating robust, leak-resistant seals that withstand handling and transportation. Stability is further enhanced by a JULONG dual-color photoelectric eye, providing accurate mark tracking for perfect bag alignment and uniform pouch lengths, which is vital for printed packaging materials. Operational flexibility is offered through an independent cutter capable of flat or serrated cuts, allowing for customized pack finishes. Built for industrial endurance from stainless steel, the machine achieves a working speed of 20–40 bags per minute, automating production to reduce labor costs and operator intervention while maintaining a clean, professional operation suitable for stringent factory environments.
Technical Specifications
| Parameter | Detail |
|---|---|
| Machine Type | Automatic |
| Construction Material | Stainless Steel |
| Unit Weight | 350 kg |
| Production Speed | 20–40 bags/min |
| Bag Making Range | Width: 20–80 mm; Length: up to 150 mm |
| Control System | PLC Control |
| Dosing Accuracy | ±1–10% (material & quantity dependent) |
| Film Tracking System | JULONG Dual Color Photoelectric Eye |
| Bag Pulling Mechanism | Variable Frequency Motor Crank with Heat Sealing |
| Cutting Options | Flat or Serrated Cut (Independent Cutter, 3mm spacing) |
| Back Sealing Width | 5–10 mm (No Pattern) |
| Horizontal Sealing Width | 8–10 mm; Diagonal Mesh (1mm) or Straight Pattern (2mm) |
| Leak-Proof Sealing Line | 1 mm (For Liquid Packaging) |
| Sealing Methodology | Twisted Edge Adhesive Sealing |
| Compatible Film | Composite Packaging Material |
| Standard Warranty | 1 Year |
Application Fields
The Automatic Pouch Filling and Sealing Machine is expertly engineered for the sachet packaging of a wide array of liquid products where seal integrity and dosing precision are paramount. It finds primary application in the daily chemical and personal care sectors, efficiently packaging products such as shampoo, shower gel, liquid soap, hand sanitizer, and similar formulations. The machine is an ideal solution for production facilities—including factories, workshops, and integrated packaging lines—that require standardized pouch dimensions, unwavering seal quality, and automated operation to achieve higher throughput with minimal manual handling. It serves as a cost-effective and reliable cornerstone for businesses seeking to enhance their small-pouch packaging capabilities with consistent, professional results.
