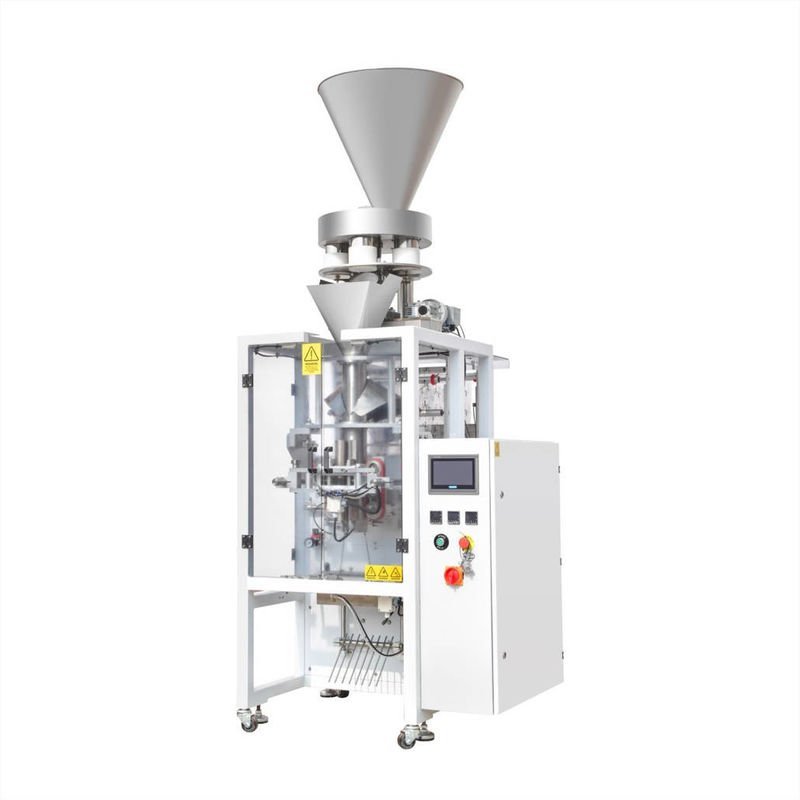

Pack Mate PM-G50II Automatic Bag Filling Machine
The Pack Mate PM-G50II Automatic Bag Filling Machine is a compact, production-ready pouch filling and sealing solution engineered for small-dose packaging of particles using composite packaging films. Designed for stable high-speed operation and consistent sealing quality, it supports adjustable dosing within a 1–50 ml range and is well-suited to factories seeking efficient automation with low air and gas consumption.
Product Features
Efficient and Stable Film Handling: The system utilizes a roller bag pulling mechanism driven by a Schneider servo motor, ensuring smooth film transport, accurate tracking, and reliable pouch forming during continuous, high-speed operation. This precision directly contributes to consistent bag quality and minimal downtime.
Precise Small-Dose Filling: Offering a measurement range of 7–50 ml with four-level adjustment, the machine provides flexible dosing control perfectly suited for multiple SKUs and varying packaging sizes within the small-volume segment, ensuring accuracy and versatility.
Robust Sealing for Composite Films: Specifically built for composite packaging materials, the machine delivers strong, consistent heat seals. With a horizontal sealing width of 9 mm and a vertical sealing width of 7 mm, it enhances package integrity and significantly reduces the risk of leakage.
Low Operational Costs: Engineered for efficiency, the system requires a gas consumption of only 0.2 m³/min and an air source pressure of 6 kg, supporting cost-effective operation while maintaining reliable pneumatic performance and reducing overall utility expenses.
Accurate Registration and Control: Equipped with a JULONG optoelectronic eye, the machine achieves high-precision film mark detection and positioning. This ensures stable bag length control and a neat, professional appearance across all production batches.
High-Speed Production Capacity: Capable of packaging speeds from 50 to 100 bags per minute (with a gearbox ratio of 1:20), the PM-G50II enables efficient, high-throughput output, making it ideal for production lines with high demand for small sachets or pouches.
Durable Industrial Construction: With a solid net weight of 180 kg, the machine features an industrial-grade structure designed for demanding workshop environments. It offers excellent vibration resistance, operational stability, and is built for a long service life.
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Automatic pouch filling and sealing machine (for particles) |
| Packaging Materials | Particles |
| Packaging Film | Composite packaging material |
| Packaging Capacity | 1–50 ml |
| Measurement Range | 7–50 ml, adjustable in four levels |
| Packaging Speed | 50–100 bags/min (gearbox 1:20) |
| Bag Pulling Method | Roller bag pulling (Schneider servo motor) |
| Cutting / Drive Method | Stepping motor for bag pulling control |
| Sealing Width | Horizontal: 9 mm; Vertical: 7 mm |
| Heat Sealing Pattern | Mesh pattern (0.8 mm spacing) or straight pattern (1.2 mm spacing) |
| Optoelectronic Eye | JULONG |
| Air Source Pressure | 6 kg |
| Gas Consumption | 0.2 m³/min |
| Machine Weight | 180 kg |
| Bag Size Capability | Bag width ≤ 85 mm; film width ≤ 170 mm; bag length ≤ 120 mm (with one forming set) |
| Measurement Accuracy | ±1–10% (depends on material characteristics and fill volume) |
Application Areas
The PM-G50II is ideally suited for automated small-dose pouch packaging of particulate products using composite films. Its precision and reliability make it a valuable asset across various industries.
Food Processing: Perfect for packaging seasoning granules, sugar substitutes, small snack particles, dry food additives, and similar free-flowing particulates with high hygiene and speed requirements.
Pharmaceutical and Nutraceutical: Well-suited for granulated supplements and measured-dose particulate preparations, supporting compliance with strict packaging standards (subject to site-specific regulatory requirements).
Chemical and Daily-Use Products: Excellent for packaging desiccant particles, additive granules, and other small particulate items that benefit from fast, consistent, and secure sachet packaging.
General Manufacturing: An optimal solution for any production line requiring stable, high-speed pouch forming, filling, and sealing for small volumes of particle-based products, enhancing automation and output.
