Product Introduction

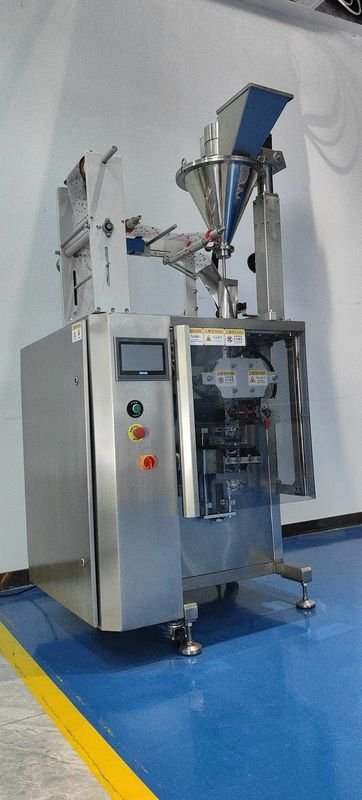

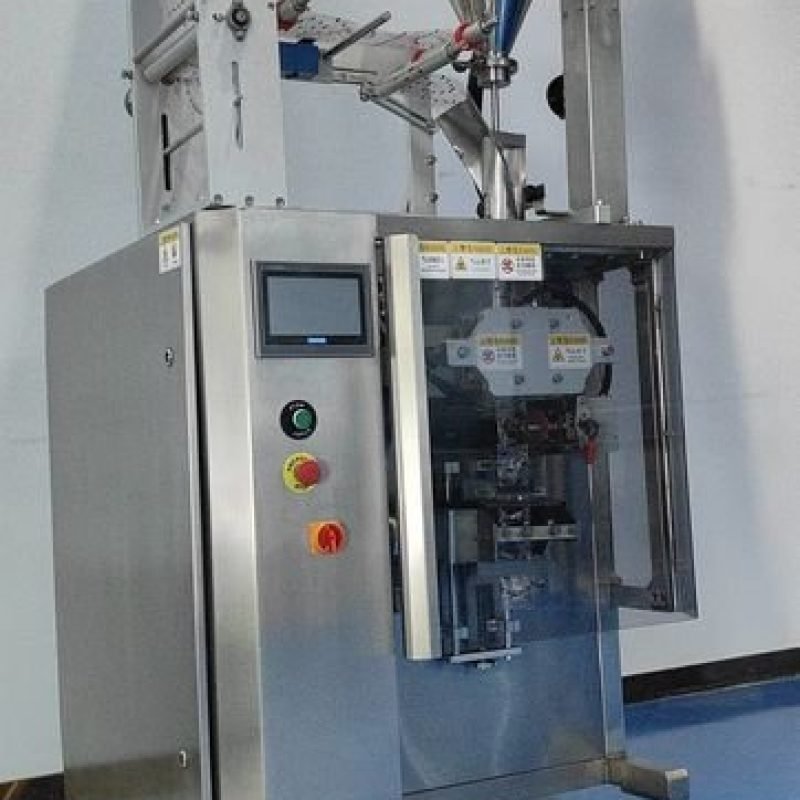

Designed for the rigorous demands of modern manufacturing, the Fully Automatic High-Speed Three and Four Sided Sealing and Packaging Machine stands as a pinnacle of efficiency and reliability in pouch packaging solutions. It integrates an advanced intelligent control system to automate the entire packaging sequence—from precise film feeding and pouch forming to flawless three-side or four-side sealing. This automation streamlines production, significantly boosting output while ensuring uniform seal quality batch after batch. Housed within a compact, robust stainless-steel frame measuring L1400 × W1000 × H1400 mm, the machine is built for durability and easy maintenance in challenging industrial settings. Its compatibility with a wide array of common packaging films and paper materials, coupled with flexible power configurations (220V or 380V), ensures seamless integration into diverse global production facilities. Capable of operating at speeds ranging from 80 to 145 bags per minute—adjustable based on pouch dimensions, material type, and sealing pattern—this machine delivers consistent, high-performance packaging tailored for businesses aiming to optimize their sealing processes with dependable, repeatable results.
Product Features
High-Speed Automated Performance
Engineered with a sophisticated automatic control system, this machine enables continuous, high-speed packaging operations with minimal operator intervention. Its stable and rhythmic operation enhances production line efficiency, reduces labor costs, and supports streamlined manufacturing schedules.
Versatile Sealing Configurations
Offering the flexibility of both three-side and four-side sealing on a single platform, this machine eliminates the need for multiple pieces of equipment. Manufacturers can effortlessly switch between packaging formats to meet varied product specifications and branding requirements.
Precision Sealing Quality
Equipped to perform straight-line, grid-pattern, or seamless (no-line) sealing, the machine caters to both aesthetic preferences and functional needs. It is meticulously calibrated to maintain impeccable seal integrity and a uniform pouch appearance, even at peak operational speeds.
Robust and Hygienic Construction
Constructed primarily from high-grade stainless steel, the machine offers superior corrosion resistance, structural durability, and ease of cleaning. This design ensures long-term reliability and compliance with stringent hygiene standards in sensitive production environments.
Extensive Material Compatibility
The system supports a broad spectrum of packaging materials, including PE, PP, PVC, OPP, and various paper substrates. This versatility allows for adaptable packaging strategies across different industries, accommodating both film-based and paper-based solutions.
Seamless Industrial Integration
Designed with practical factory requirements in mind, the machine features dual power supply options (220V/380V), a modest power consumption of 2.2 kW, and a standard compressed air requirement of 0.6 MPa. This ensures easy integration into existing industrial utility systems while promoting energy efficiency.
Technical Specifications
| Parameter | Detail |
|---|---|
| Product Name | Fully Automatic High-Speed Three And Four Sided Sealing And Packaging Machine |
| Control System | Intelligent Automatic Control System |
| Operation Type | Fully Automatic |
| Sealing Type | Three-side Sealing / Four-side Sealing |
| Sealing Pattern | Straight Lines / Grid Pattern / No Lines (Seamless) |
| Packaging Speed | 80–145 bags/minute |
| Pouch Size Range (L × W) | Length: 40–120 mm; Width: 25–85 mm |
| Compatible Materials | PE, PP, PVC, OPP, Paper |
| Power Supply | 220V / 380V (Configurable) |
| Rated Power | 2.2 kW |
| Air Pressure Requirement | 0.6 MPa |
| Primary Construction Material | Stainless Steel |
| Machine Dimensions (L × W × H) | 1400 mm × 1000 mm × 1400 mm |
| Net Weight | Approx. 450 kg |
Application Fields
Food & Beverage Industry
Ideal for high-volume pouch packaging of snacks, condiments, powders, and liquids, where consistent seal strength, product freshness, and visual appeal are paramount. Its high-speed capability meets the throughput demands of modern food processing lines.
Pharmaceutical & Healthcare Sector
Suited for packaging sterile products, medical supplies, and pharmaceuticals. The stainless-steel construction supports cleanroom compatibility, while the precise, repeatable sealing ensures product integrity and compliance with safety standards.
Daily Chemicals & Personal Care
Effectively packages items such as wet wipes, shampoo sachets, cosmetic samples, and detergent pods. The flexibility in sealing styles (three or four sides) allows for creative and functional pouch designs tailored to brand identity and consumer use.
General Industrial & Consumer Goods
A reliable solution for packaging hardware components, electronic parts, agricultural products, and various consumer goods. Its ability to handle multiple materials and provide robust, tamper-evident seals makes it a versatile asset for diverse manufacturing and logistics operations.
